1994 Mustangs Driver Seat Fuse Box Diagram. 1994 Mustangs Driver Seat Fuse Box Map. Fuse Panel Layout Diagram Parts: fuel pump, electric cooling fan motor, anti lock brake system, convertible top, power seat, cigar lighter, Ignition switch, starter relay, exterior lamps, I/P fuse panel, powertrain control module, constant control module, rear window defrost, auxiliary socket, alternator ...

01/03/2015 · 1994, 1995 Ford Mustang GT Fuse Box Diagram Under Dash. by admin • March 1, 2015 • 1 Comment ... 1994, 1995 Mustang Fuse Relay Panel Diagram. 1994 & 1995 Ford Mustang fuse relay panel diagram located under the driver’s side dash. Air Bags, Wiper/Washer, Head Lights, Amp, Clock, A/c, Key less Entry, Anti Lock Brakes, Power Mirror, Flasher ...

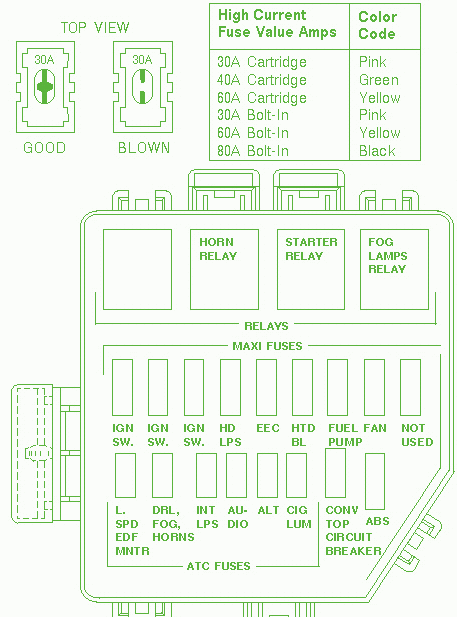

02/10/2015 · Figure 1. 1994 Ford Mustang Fuse Box Diagram. 1994-1995 Ford Mustang Fuse Box Diagram (Under Hood) In addition to identifying amperage, fuse type, and circuits protected, this fuse box diagram also offers the color code used to identify high current fuses, as well as a diagram of where each fuse is located. Figure 2.

1979-2017 Mustang Diagrams 2004-2014 Ford F150 Fuse Box Diagram ID Location (2004 04 2005 05 2006 06 2007 07 2008 08 2009 09 2010 10 2011 11 2012 12 2013 13 2014 14) 08 2008 Dodge Ram Fuse Box Diagram Under Hood (INTEGRATED POWER MODULE)

1994 1995 Mustang Fuse Diagram CCRM See more. ... For Matthew. What others are saying Before the day of circuit breakers, when the power went off, you had to go to your fuse box. Ford Mustang V6 and Ford Mustang GT 2005-2014 Fuse Box Diagram - Mustangforums ... Car electric golf cart wiring diagram - www.anatomynote.com

R13 LDR and LED must be placed such a way that smoke particles reduce the light drop on LDR and change its resistance. On the other hand R12 LDR and LED must be placed adjacent and no air circulation occurs. Best way to do it, place R12 and LED in a separate box. So smoke won’t effect R12 and its resistance will remain same. When the comparator detects the voltage difference between two …

02/06/2012 · Complete computer, actuator & sensor wiring diagram for 94-95 Mass Air Mustangs ... Fuel pump power relay – located under the driver’s seat in most stangs built before 92. On 92 and later model cars it is located below the Mass Air Flow meter. ... 94-95 models only: 20 amp fuel pump fuse in the engine compartment fuse box. Look for 12 volts ...
